Seals

SEAL - OIL 1.00 SHF X

SEAL - WHEEL SHAFT OR TINE SHAFT (TUFFY, SUPER BRONCO,  JUNIOR & OTHERS)Replaces Troy-Bilt part numbers:190937497039GW-970399613721-04036921-04036

BALL BEARING

BEARING CARRIER

Complete seal kit for all Horse III, PTO, and OPC tillers, serial numbers 640000 and higher, through model number 12064. This kit fits all Horse tillers equipped with the PTO transmission and the tapered tine shaft. Will not fit later tillers (Beginning with model 12068) which are equipped with the straight tine shaft (see kit CP1840C for these machines).  No substitutions. We also have a complete gasket kit for Horse tillers: CP1121A Replaces: 1840B Contains: (1) CP9600 -...

Complete seal kit for all PTO Horse tillers model 12068 (Serial Number 120680100101 and Up) and later. This kit fits all Horse tillers equipped with the PTO transmission and the straight tine shaft. Will not fit earlier tillers which are equipped with the tapered tine shaft (see kit CP1840B for these machines).  No substitutions. We also have a complete gasket kit for Horse tillers: CP1121A Replaces: 1840C Contains: (1) CP9600 - Driveshaft seal 1.250 OD X .750 ID (TB part#...

Complete seal kit for all Horse I and Horse II tillers, serial numbers 639999 and below. This kit fits all Horse tillers prior to the introduction of the PTO transmission. No substitutions. We also have a complete gasket kit for Horse tillers: CP1121A Replaces: 1840 Contains: (1) CP9600 - Driveshaft seal 1.250 OD X .750 ID (TB part# 9600, 983632, 921-04044)(2) CP9621 - Wheel shaft seals 1.499 OD X 1.00 ID (TB part# 9609, 9621, GW-9621, 921-04031)(2) CP9618 - Tappered...

SEAL- PONY MAIN D/SHAFT .75 ID (ONLY 1 SEAL - 2 ARE PICTURED TO SHOW FRONT AND BACK OF SEAL)FITS: PONY I, II, & SUPER PONY

Drive Shaft Seal - All Troy-Bilt Horse tillers with PTO. This seal fits the rear of the main transmission and the front of the PTO (tine) transmission on these tillers. Dimensions: 1.75"OD, .75"ID, x .25" wideReplaces Troy-Bilt part numbers:9617GW-9617721-04030921-04030

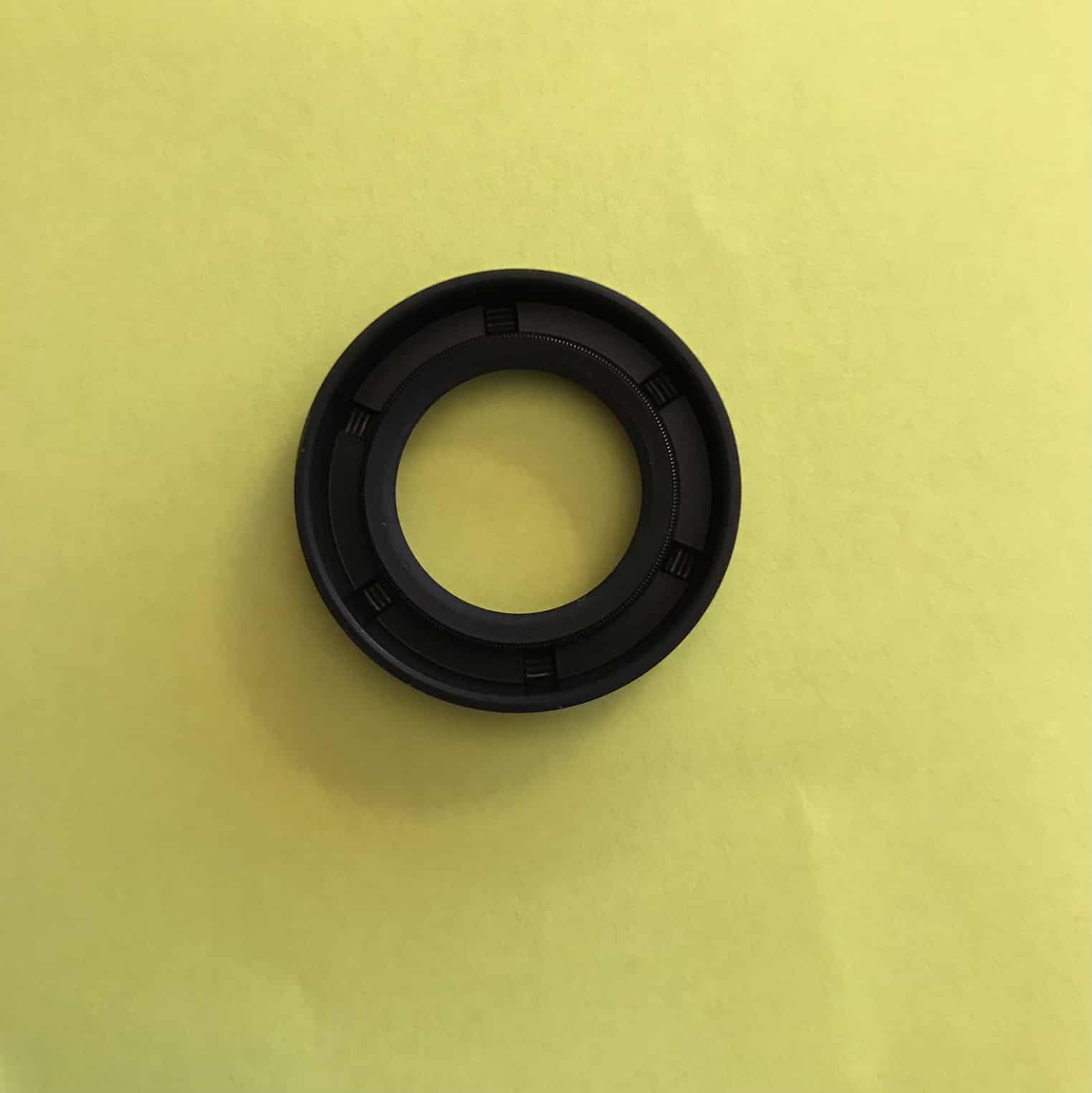

Main Drive Shaft Seal - (Pinion Shaft) - Main Transmission Housing, All Troy-Bilt "Horse" model tillers. 1.250 OD X .750 IDReplaces Troy-Bilt part numbers: 9600850301983632921-04044

Seal, Hi-Lo shift lever, Troy-Bilt "Horse" tillers 493014 and Above. All earlier tillers use our CP9603 O-Rings to seal the Hi/Lo lever. This is a OEM Part - .625 SHF X 1.0 BORE Replaces Troy-Bilt part numbers: 96119622921-04034

OIL SEAL SET - PONY I, II, III AND SUPER PONYIncludes: (2) CP9621 Wheel Shaft Seals(2) CP9618 Tine Shaft Seals(1) CP9610 Main Drive Shaft Oil Seal(1) CP9603 O-Ring
