Gaskets & Shims

Gasket Kit - All Troy-Bilt Horse Tillers - Includes 6 total gaskets:  (2) CP1124-2 Driveshaft Cap Gasket .010" Thick (1) CP1123 Transmission Cover Gasket(2) CP1129-1 Tine Shaft Cover Gasket .010" Thick(1) CP1129-2 Tine Shaft Cover Gasket .030" ThickReplaces Troy-Bilt Part number:1121A

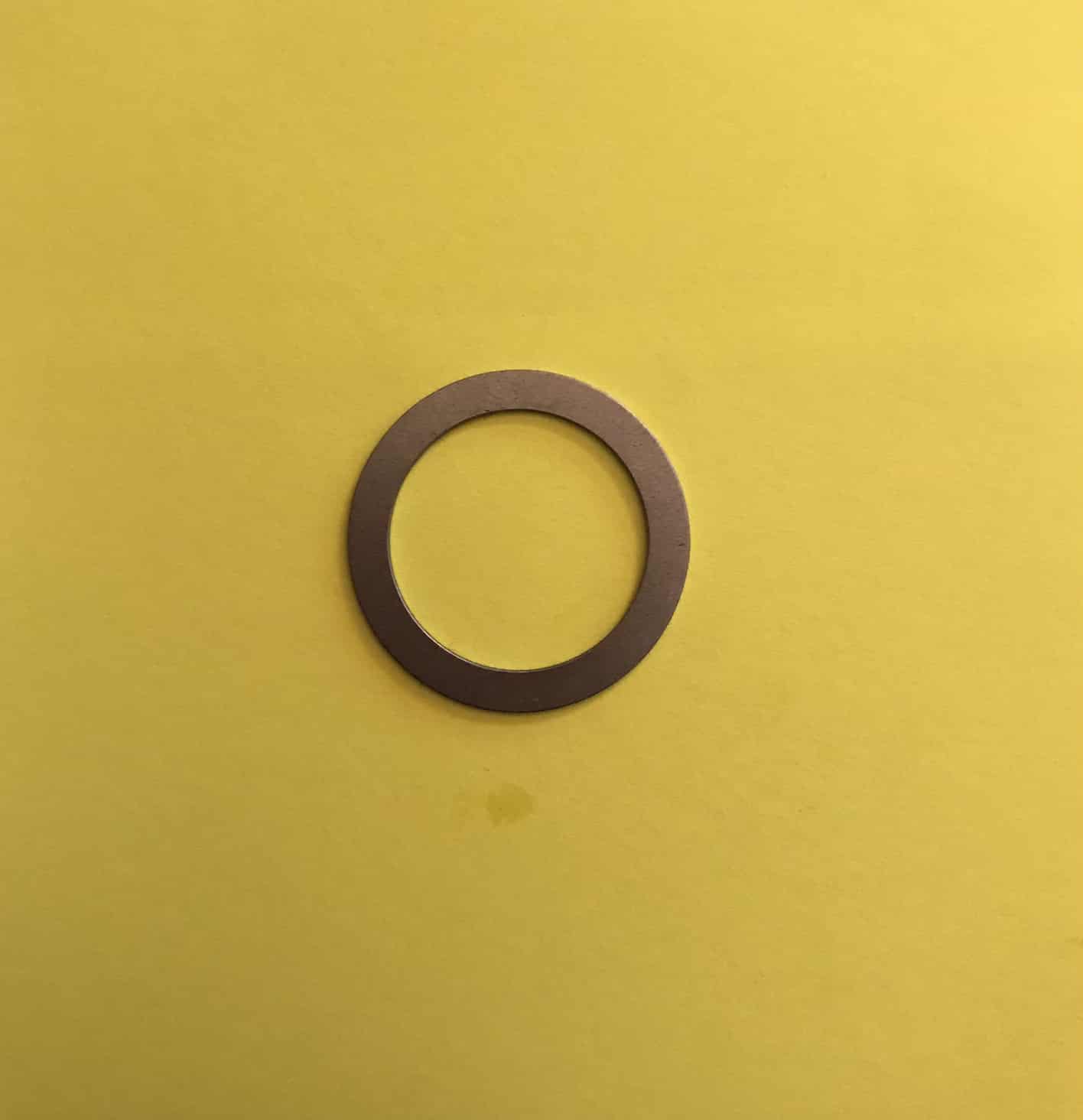

SHIM .031" - USE 2 FOR 1138-1 OR 736-04187 WHICH ARE .062" 1.0" OD X .7656" ID X .031" Thickness Replaces part numbers: 1138-2, 732-04192. 1138-1

Driveshaft shim set - any Horse model tiller. Also fits Pony, Junior, & Econo Horse Tillers. No substitutions. Contains: Part Number   Troy-Bilt Part Number   Description  QtyCP1224-1      1224-1   Shim - Driveshaft ".010" thick   2CP1224-2      1224-2   Shim - Driveshaft ".030" thick   4CP1224-3      1224-3   Shim - Driveshaft ".005" thick   1 ...

Rear cap gasket - .010" thick. Used on front and rear drive shaft caps for all Troy-Bilt Horse tillers and some Pony, Junior and Econo-Horse tillers. Replaces Troy-Bilt part numbers:1124-2GW-1124-2GW-1124-2099RCG-1

Gasket - Front Cover .010 Fits:  Pony IV: Serial #'s S164133 - S860712, Model #'s 5011 & 5111Pony V Serial: #'s S186072 - S0204131, Model #'s 5040, 5041, 5050 & 5051Pony VI: Serial #'s S024133 - S0242649, Model #s 5411 & 5511Junior III: Serial #'s M0067999 - M0075089, Model #'s 5211 & 5311Junior IV: Serial #'s M0075090 - M0100969, Model #'s 5611 & 5711Econo-Horse: Serial #'s E0001001 - E00032773, Model #'s 6211, 6311, 6411 & 6511 ...

GASKET - TRANSMISSION COVER - PONY I, SUPER PONY & PONY IIFITS:· 20458 PONY I 5HP ELEC (S/N P1001-P101750)-->TRANSMISSION HOUSING & SEALS/GASKET· 20459 PONY I 5HP STD (S/N P1001-P101750)-->TRANSMISSION HOUSING & SEALS/GASKET· 20460 PONY I 5HP ELEC (S/N P1001-P101750)-->TRANSMISSION HOUSING & SEALS/GASKET· 20461 PONY I 5HP STD (S/N P1001-P101750)-->TRANSMISSION HOUSING & SEALS/GASKET· 20462 PONY I 5HP STD (S/N P1001-P101750)-->TRANSMISSION HOUSING & SEALS/GASKET· 20463...

Gasket Set - Pony I, Super Pony & Pony II INCLUDES: (1) 20338 - Transmission Cover Gasket(2) CP1129-1 - Tiller Cover Gasket - .010"(1) CP1129-2 - Tiller Cover Gasket - .030"(2) CP1124-2 - Drive Shaft Cap Gasket - .010" FITS: · 20458 PONY I 5HP ELEC (S/N P1001-P101750)-->TRANSMISSION HOUSING & SEALS/GASKET· 20459 PONY I 5HP STD (S/N P1001-P101750)-->TRANSMISSION HOUSING & SEALS/GASKET· 20460 PONY I 5HP ELEC (S/N P1001-P101750)-->TRANSMISSION HOUSING & SEALS/GASKET· 20461 PONY...

Gasket Set - Pony Serial Numbers S164133 and AboveFits:PONY IV - models: 5011, 5111PONY V - models: 5040, 5041, 5150, 5151PONY VI OPC - models: 5411, 5511JUNIOR III - models: 5211, 5311JUNIOR IV OPC - models: 5611, 5711ECONO-HORSE - models: 6211, 6311, 6411, 6511 Includes:  (1) 20693-2 Gasket Front Cover .010(2) 1129-1 Gasket Tiller Cover(2) 1124-2 Gasket Bearing Cover(1) 20694 Gasket Tranmission Cover(1) 1129-2 Gasket Tiller Cover .030 Replaces Troy-Bilt Part#s: 10358GW-10358 ...

GASKET - GEAR HOUSINGReplaces Troy-Bilt part#s: 921-0422950032GW-50032

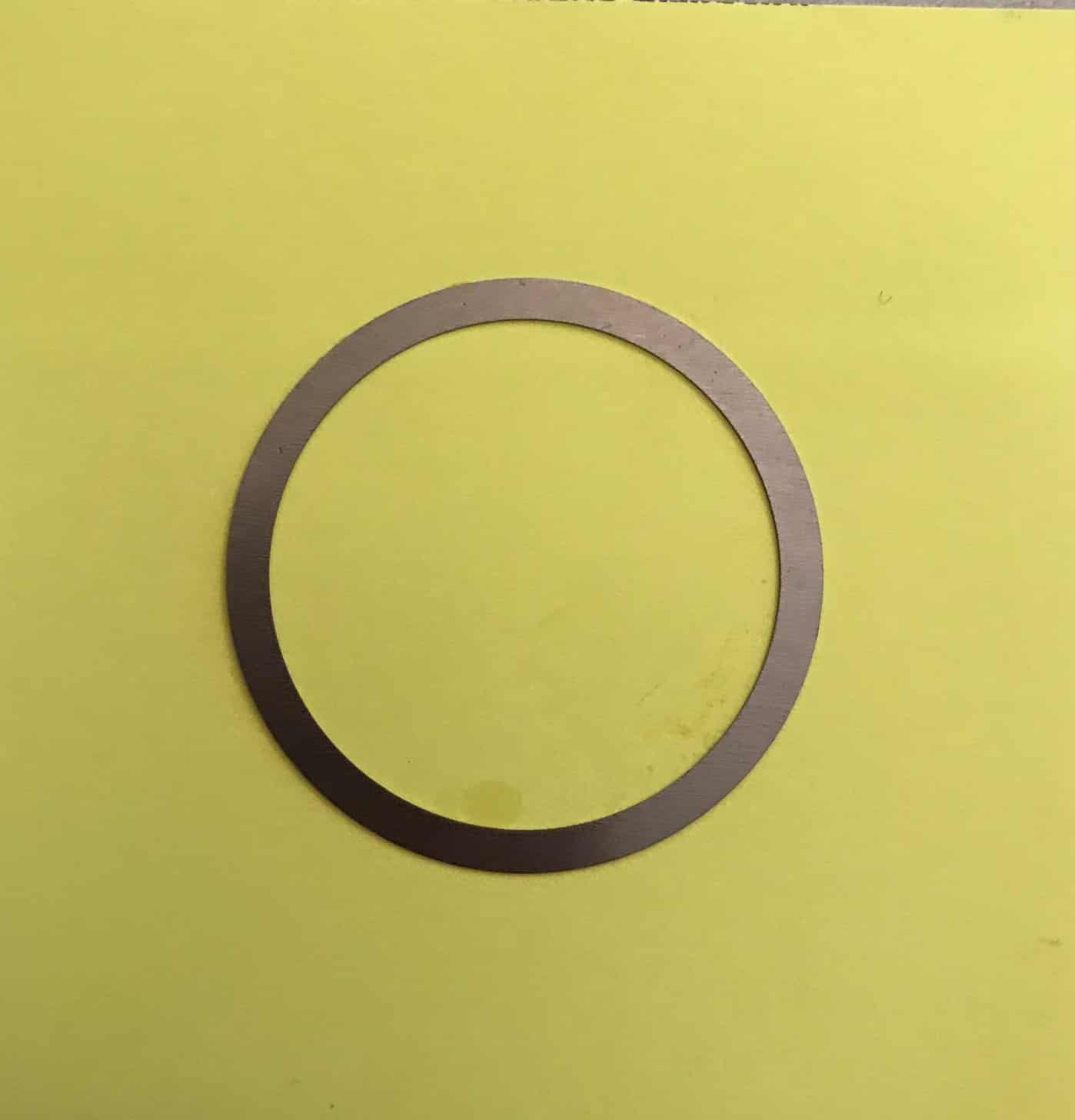

Main drive shaft shim - Troy-Bilt Horse, Pony, Junior and Econo Horse tillers1 1/2 I.D. - 0.005" ThicknessReplaces Troy-Bilt part numbers:1224-3

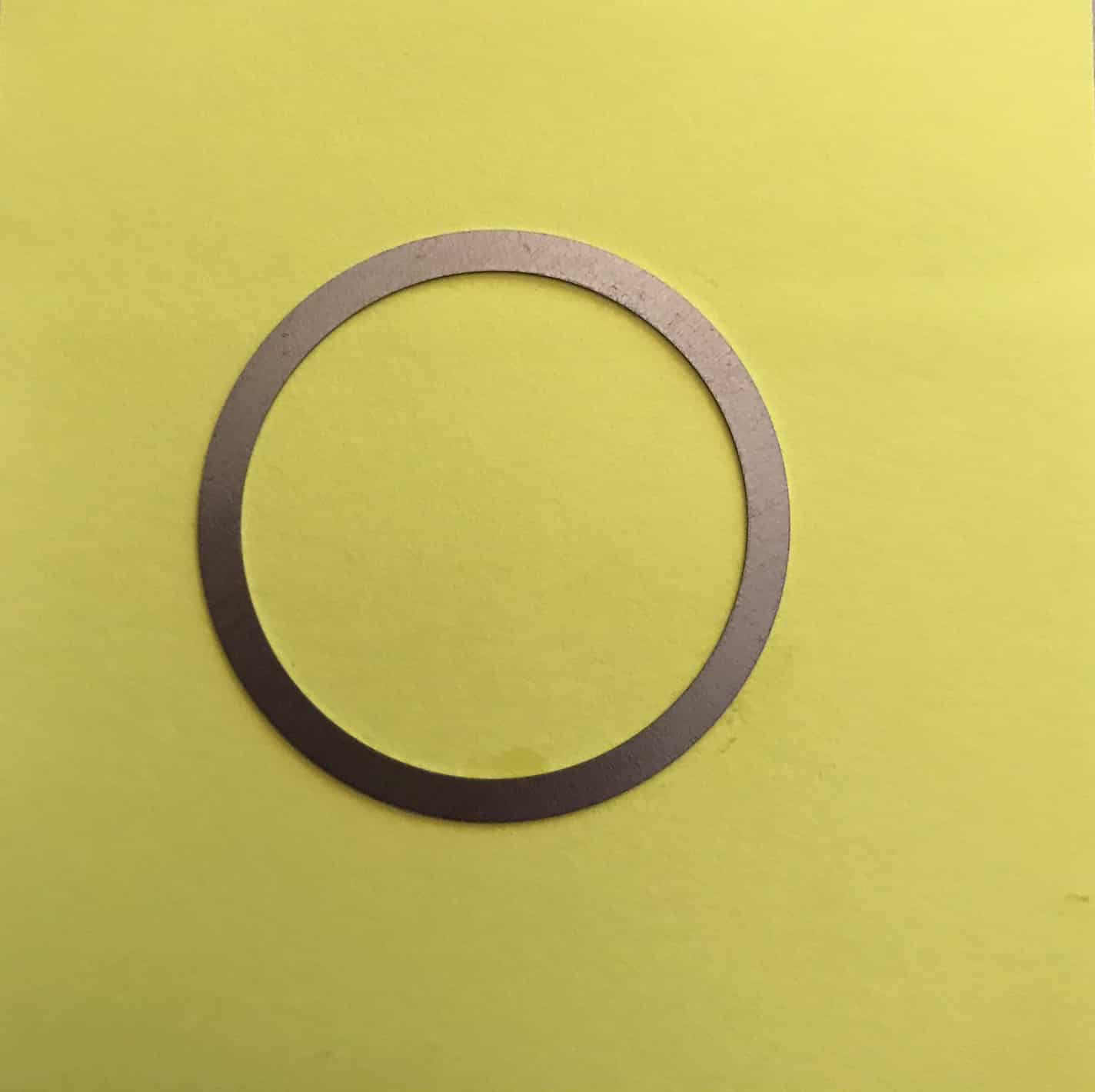

Main drive shaft shim - Troy-Bilt Horse, Pony, Junior, & Econo Horse Tillers - 1 1/2" I.D. - 0.010" ThicknessReplaces Troy-Bilt part numbers:1224-1

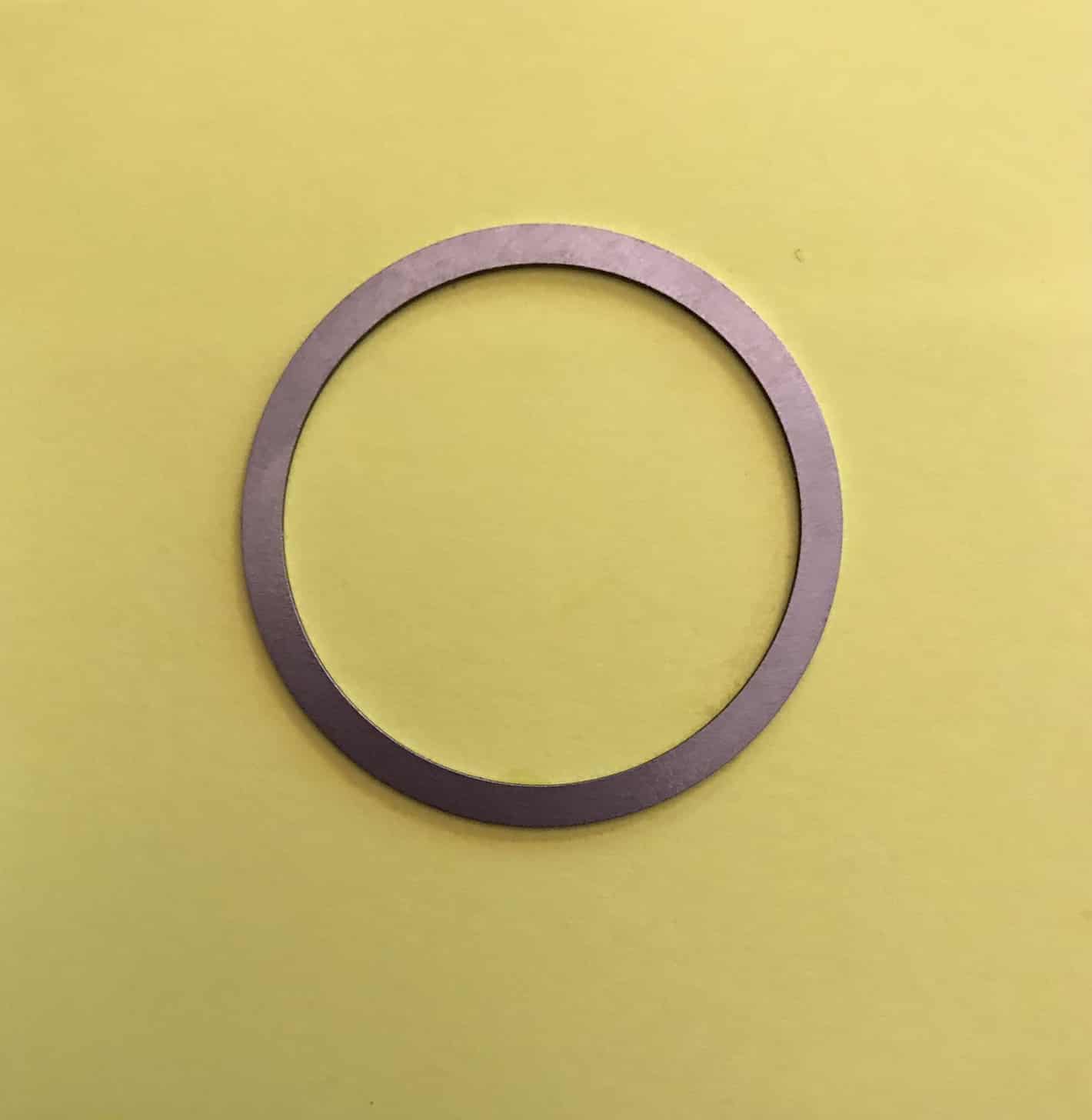

Main drive shaft shim - Troy-Bilt Horse, Pony, Junior and Econo Horse tillers 1 1/2" I.D. - 0.030" ThicknessReplaces Troy-Bilt part numbers:1224-2
